STM32-QFP64_ آداپتور پروگرامر
IC Test & Burn-in Socket with a simple board, for STM32 microcontroller in QFP64
- مشخصات فنی
- نام اورجینال قطعه: STM32-QFP64
- پکیج: QFP64
- کارخانه سازنده: Yamaichi
- نام گروه: انواع پروگرامرها و بردهای آموزشی - Board & Programmers
- نام زیرگروه: سوکت آداپتور براي پروگرامر
- مشخصات خرید
- وضعیت موجودی: سفارش از خارج
- حداقل تعداد سفارش: 1
- شماره گروه: 20
- شماره زیرگروه: 254
- نام اورجینال زیرگروه: Socket Adapter For Programmer
STM32-QFP64_ آداپتور پروگرامر

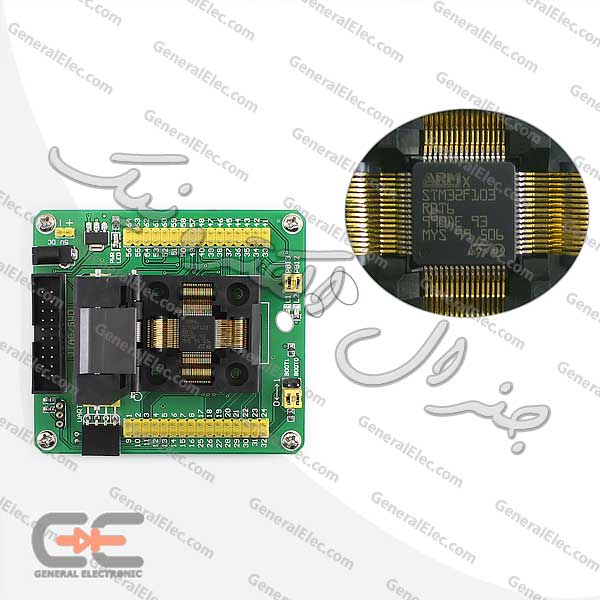

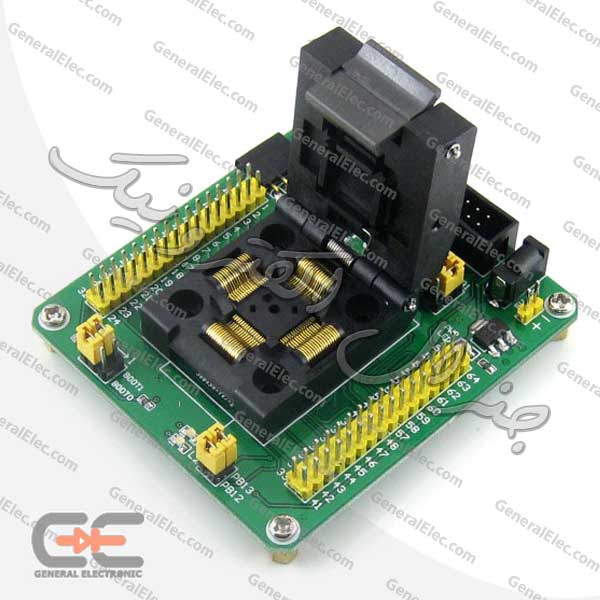

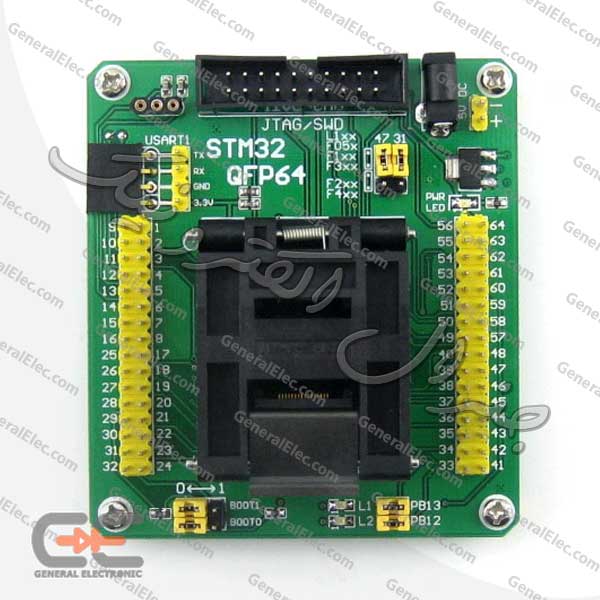

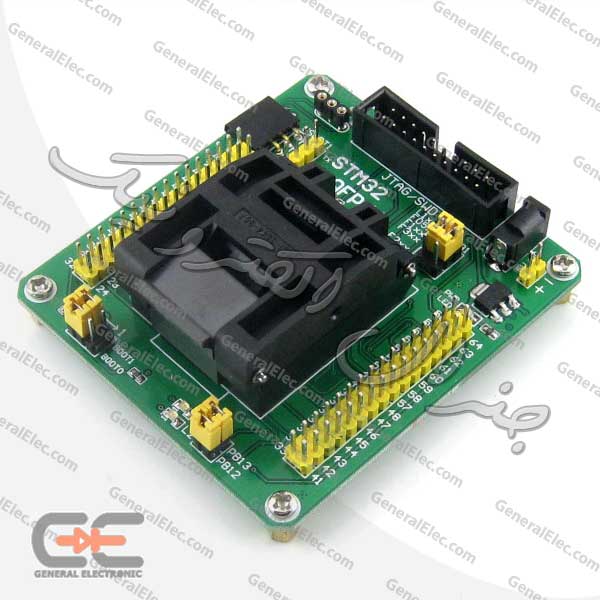

Yamaichi IC Test & Burn-in Socket with a simple board, specifically designed for STM32 microcontroller in QFP64(0.5mm pitch) package
Features

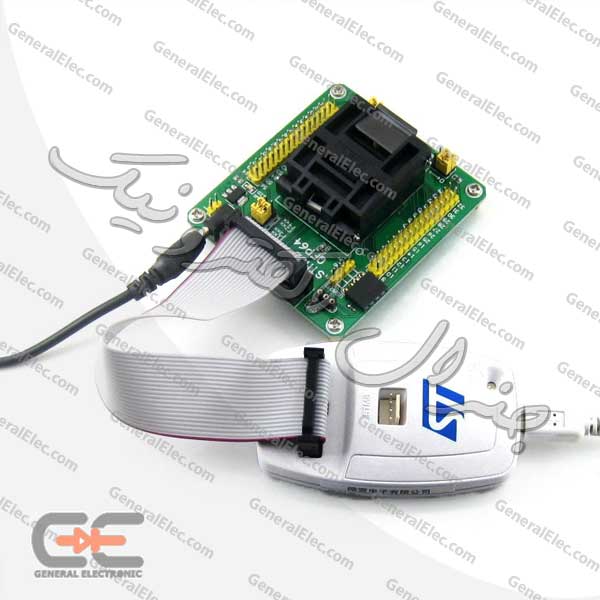

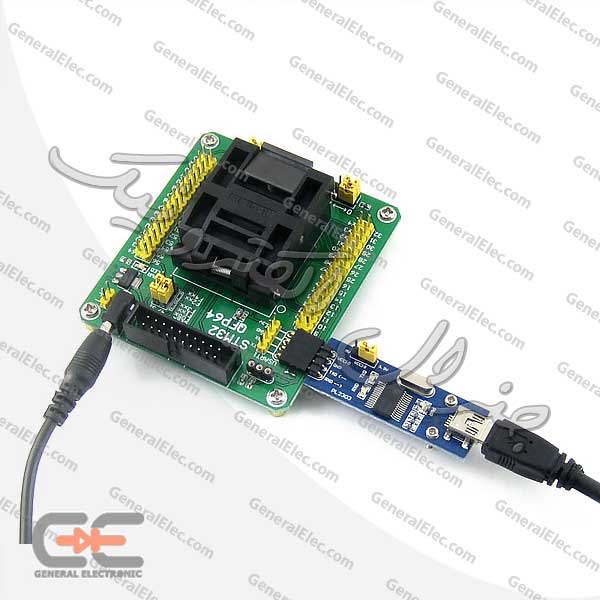

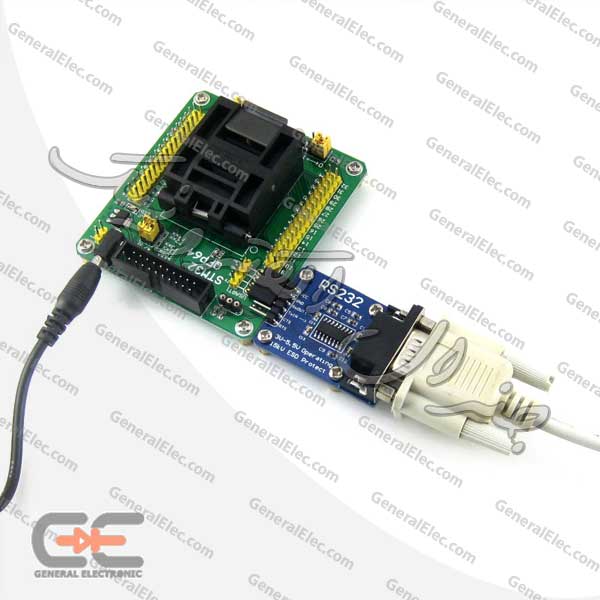

- 20-pin JTAG/SWD port and/or 4-pin USART1 interface for programming/testing
- External crystal can be connected via on board socket for system clock
- Onboard 32.768K crystal oscillator
- Two LED indicators for testing, which are connected to the I/O pins via jumpers
-
All the MCU pins are accessible on expansion connectors
- pin header pitch: 2.54mm(100mil)
Supported Devices
STM32 microcontroller in QFP64(0.5mm pitch) package with compatible pinouts:
- STM32L1xxR series (STM32L151R8, STM32L152RB, etc.)
- STM32F0xxR series (STM32F051RC, STM32F051RB, etc.)
- STM32F1xxR series (STM32F103RC, STM32F100RB, etc.)
- STM32F2xxR series (STM32F207RC, STM32F215RB, etc.)
- STM32F3xxR series (STM32F303R8, STM32F373RB, etc.)
- STM32F4xxR series (STM32F407RC, STM32F415RB, etc.)
Config the onboard "Device selection jumpers" according to the device to be programmed.
Outline and Dimensions
