STM8-QFP48_ آداپتور پروگرامر

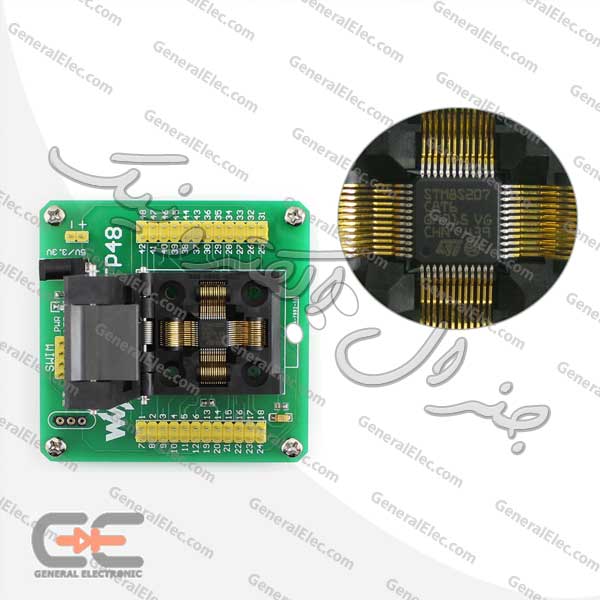

IC Test & Burn-in Socket with a simple board, for STM8 microcontroller in QFP48
- مشخصات فنی
- نام اورجینال قطعه: STM8-QFP48
- پکیج: QFP48
- کارخانه سازنده: Yamaichi
- نام گروه: انواع پروگرامرها و بردهای آموزشی - Board & Programmers
- نام زیرگروه: سوکت آداپتور براي پروگرامر
- مشخصات خرید
- وضعیت موجودی: سفارش از خارج
- حداقل تعداد سفارش: 1
- شماره گروه: 20
- شماره زیرگروه: 254
- نام اورجینال زیرگروه: Socket Adapter For Programmer
STM8-QFP48_ آداپتور پروگرامر

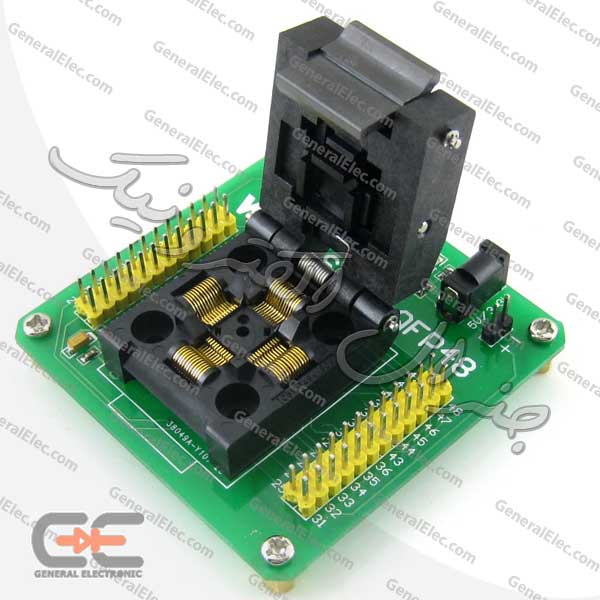

Yamaichi IC Test & Burn-in Socket with a simple board, especially for STM8 microcontroller in QFP48(0.5mm pitch) package
Features
- 4-pin SWIM Port for programming or testing
- External crystal can be connected via on board socket
- All the MCU pins are accessible on expansion connectors
Supported Devices
STM8 microcontroller in QFP48(0.5mm pitch) package with compatible pinouts
- STM8S105CxTx / STM8S207CxTx / STM8S208CxTx
- STM8AF51x8T / STM8AF52x8T / STM8AF61x8T / STM8AF62x8T
-
External crystal socket
- insert crystal to the holes on two sides, regardless of the middle hole
-

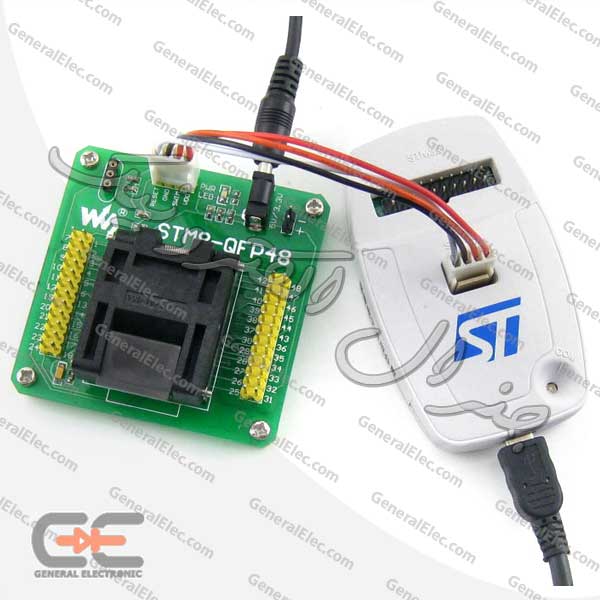

SWIM port
- for programming/debugging/testing
- compatible with ST-LINK, ST-LINK/V2, etc.
-

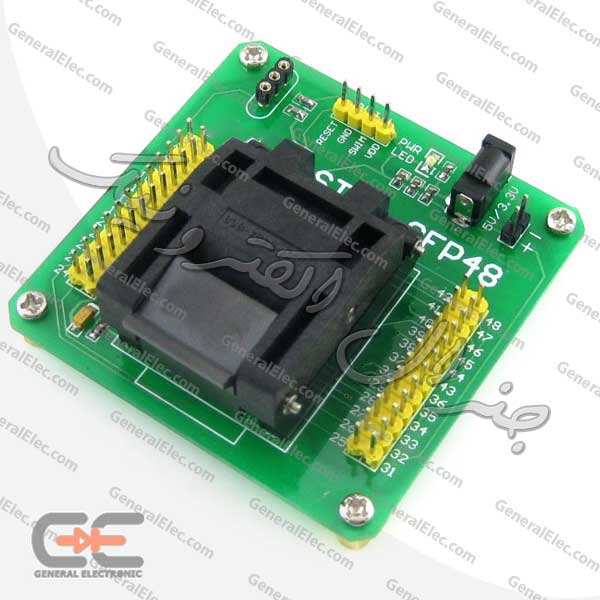

Pin headers connected to MCU pins
- clearly labeled with onboard marks
- easy for testing and further expansion
- Power indicator
-
Power input
- DC5V/3.3V
Outline and Dimensions
SWIM Port Header Pinout
The STM8-QFP48 houses SWIM headers for connecting a programmer. The header pinouts are shown in the figure 1 below.
