STM32-QFP100_ آداپتور پروگرامر
IC Test & Burn-in Socket with a simple board, for STM32 microcontroller in QFP100
- مشخصات فنی
- نام اورجینال قطعه: STM32-QFP100
- پکیج: QFP100
- کارخانه سازنده: Yamaichi
- نام گروه: انواع پروگرامرها و بردهای آموزشی - Board & Programmers
- نام زیرگروه: سوکت آداپتور براي پروگرامر
- مشخصات خرید
- وضعیت موجودی: سفارش از خارج
- حداقل تعداد سفارش: 1
- شماره گروه: 20
- شماره زیرگروه: 254
- نام اورجینال زیرگروه: Socket Adapter For Programmer
STM32-QFP100_ آداپتور پروگرامر

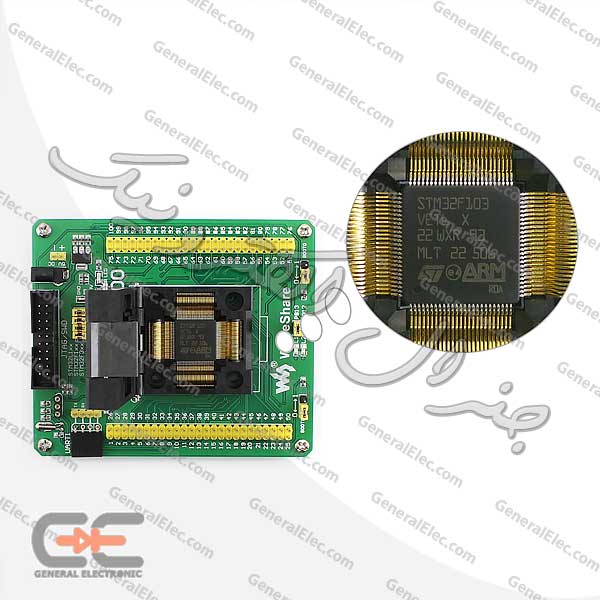

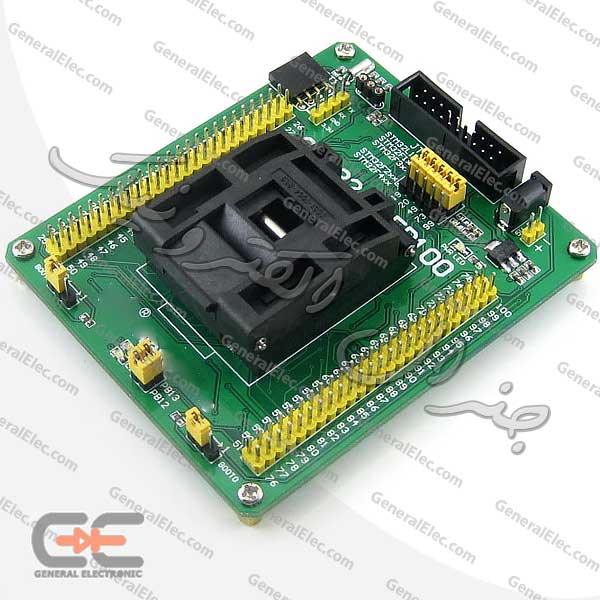

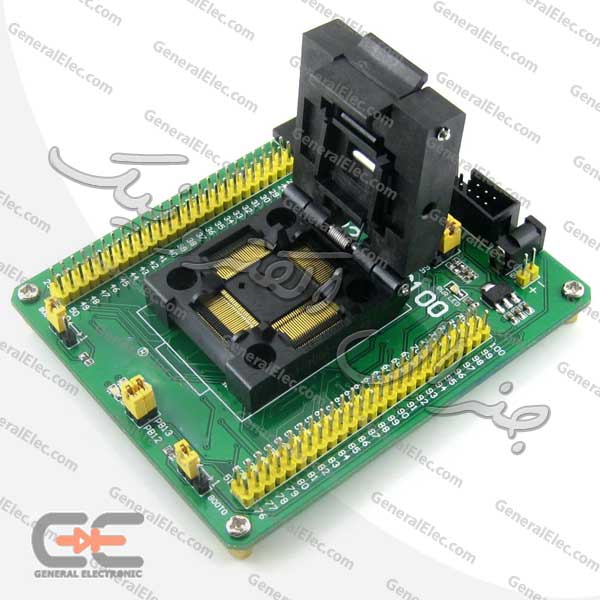

Yamaichi IC Test & Burn-in Socket with a simple board, specifically designed for STM32 microcontroller in QFP100(0.5mm pitch) package
Features

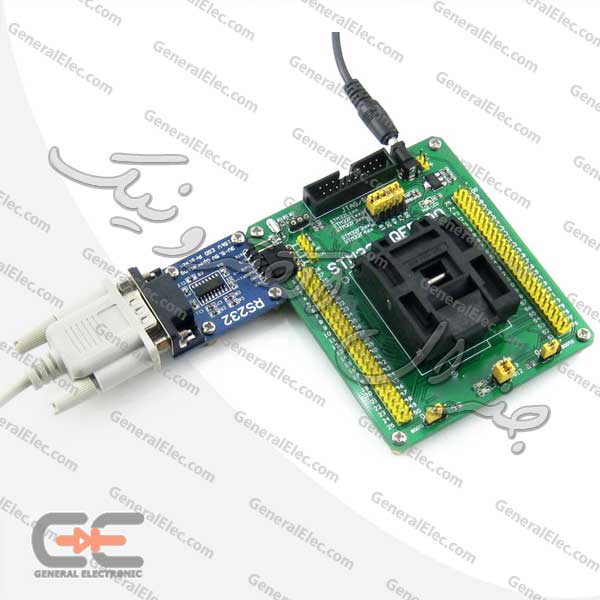

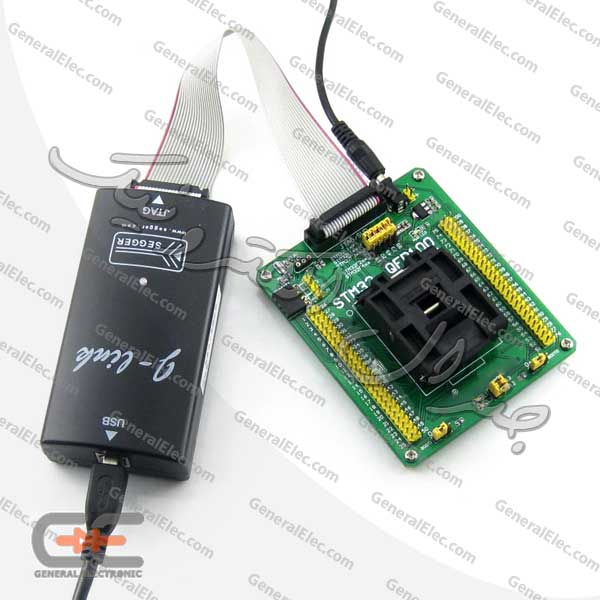

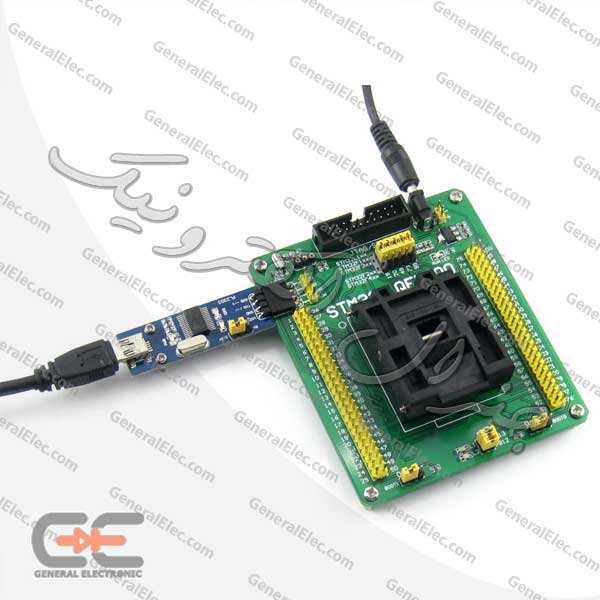

- 20-pin JTAG/SWD port and/or 4-pin USART1 interface for programming/testing
- External crystal can be connected via on board socket for system clock
- Onboard 32.768K crystal oscillator
- Two LED indicators for testing, which are connected to the I/O pins via jumpers
-

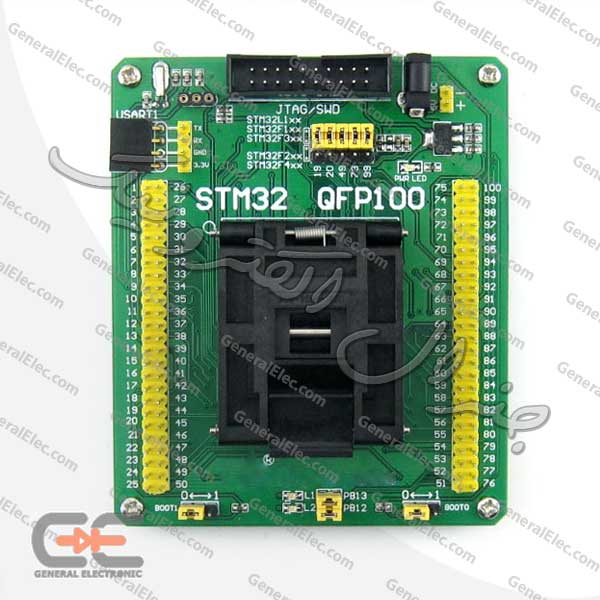

All the MCU pins are accessible on expansion connectors
- pin header pitch: 2.54mm(100mil)
Supported Devices
STM32 microcontroller in QFP100(0.5mm pitch) package with compatible pinouts:
- STM32L1xxV series (STM32L151VB, STM32L152VB, etc.)
- STM32F1xxV series (STM32F103VE, STM32F100VE, etc.)
- STM32F2xxV series (STM32F207VC, STM32F215VC, etc.)
- STM32F3xxV series (STM32F303VC, STM32F373VB, etc.)
- STM32F4xxV series (STM32F407VG, STM32F415VG, etc.)
Config the onboard "Device selection jumpers" according to the device to be programmed.
Outline and Dimensions
