STM8-QFP32_ آداپتور پروگرامر
IC Test & Burn-in Socket with a simple board, for STM8 microcontroller in QFP32
- مشخصات فنی
- نام اورجینال قطعه: STM8-QFP32
- پکیج: QFP32
- کارخانه سازنده: Yamaichi
- نام گروه: انواع پروگرامرها و بردهای آموزشی - Board & Programmers
- نام زیرگروه: سوکت آداپتور براي پروگرامر
- مشخصات خرید
- وضعیت موجودی: سفارش از خارج
- حداقل تعداد سفارش: 1
- شماره گروه: 20
- شماره زیرگروه: 254
- نام اورجینال زیرگروه: Socket Adapter For Programmer
STM8-QFP32_ آداپتور پروگرامر

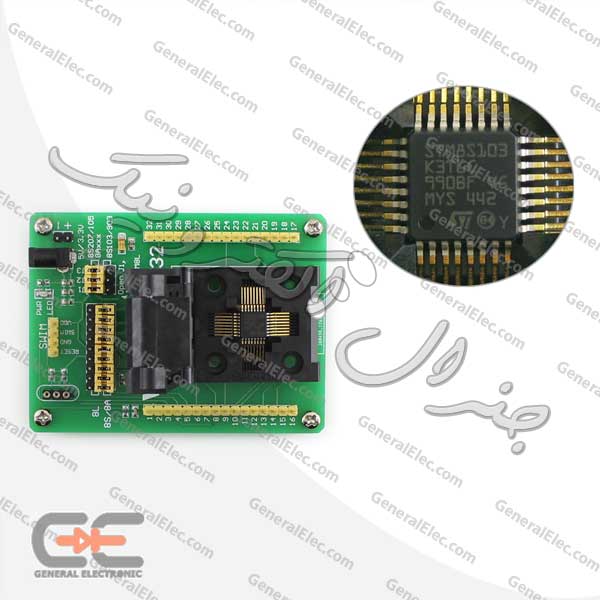

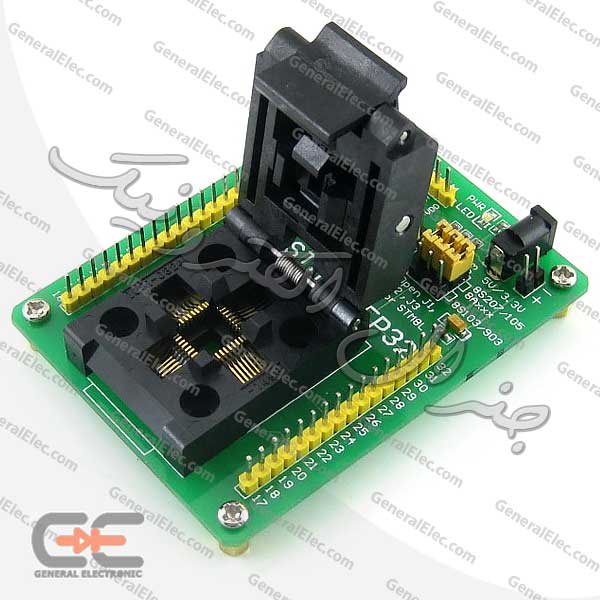

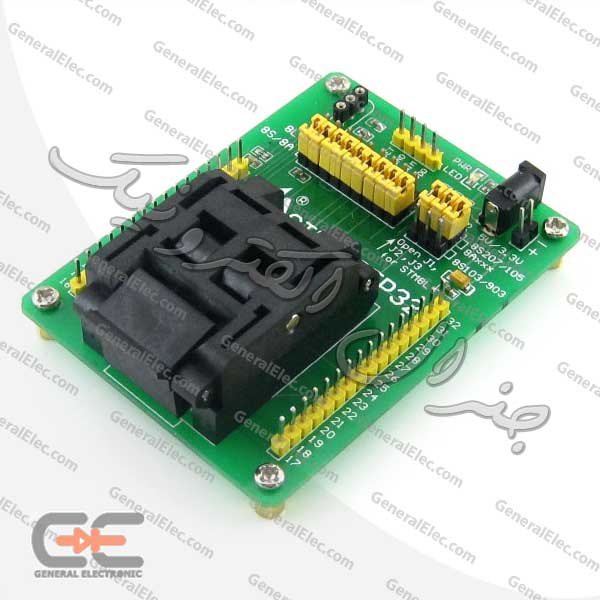

Yamaichi IC Test & Burn-in Socket with a simple board, especially for STM8 microcontroller in QFP32(0.8mm pitch) package
Features
- 4-pin SWIM Port for programming or testing
- External crystal can be connected via on board socket
- All the MCU pins are accessible on expansion connectors
-
Supports more devices
- STM8L series
- STM8S series
- STM8A series
Supported Devices
STM8 microcontroller in QFP32(0.8mm pitch) package with compatible pinouts
- STM8S103KxTxC / STM8S903KxTxC / STM8S105KxTxC / STM8S207KxTxC
- STM8Ax52x6Tx / STM8Ax62x6Tx / STM8Ax51x6Tx / STM8Ax61x6Tx
- STM8L101KxTx / STM8L151KxTx / STM8L152KxTx
-
External crystal socket
- insert crystal to the holes on two sides, regardless of the middle hole
-
MCU selection jumpers A
- 8L for STM8L series
- 8S/8A for STM8S/STM8A series
-

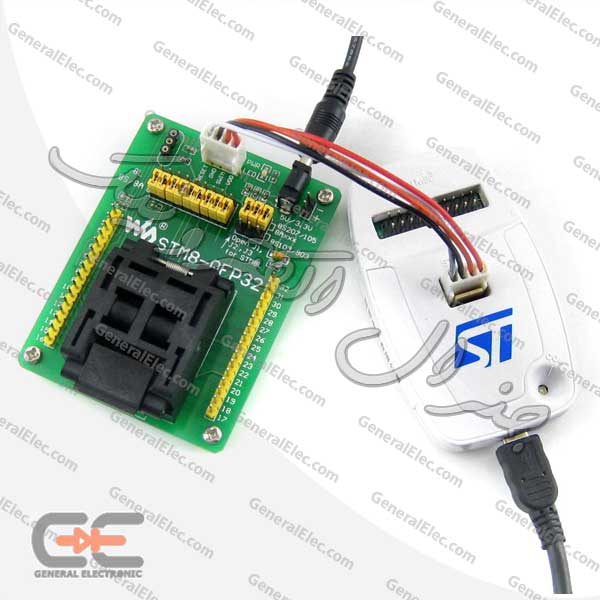

SWIM port
- for programming/debugging/testing
- compatible with ST-LINK, ST-LINK/V2, etc.
-
Pin headers connected to MCU pins
- clearly labeled with onboard marks
- easy for testing and further expansion
- Power indicator
-
MCU selection jumpers B
- STM8L series: needs no configuration, just open OR ignore them
- STM8S series: short the upper two pins for STM8S207/STM8S105, short the lower two pins for STM8S103/STM8S903
- STM8A series: short the upper two pins
-
Power input
- DC5V/3.3V
Outline and Dimensions
