LattePanda 4GB/64GB - Windows 10 Mini PC
بورد مبتنی بر سیستم عامل ویندوز 10 با 4 گیگ رم و 64 گیگ حافظه فلش
- مشخصات فنی
- نام اورجینال قطعه: LattePanda 2GB/32GB - A Powerful Windows 10 Mini PC (Unactivated)
- پکیج: board
- کارخانه سازنده: LattePanda
- نام گروه: انواع پروگرامرها و بردهای آموزشی - Board & Programmers
- نام زیرگروه: دیگر بردهای آموزشی
- مشخصات خرید
- وضعیت موجودی: موجود
- حداقل تعداد سفارش: 1
LattePanda 4GB/64GB - Windows 10 Mini PC
INTRODUCTION
You are viewing a 4GB RAM LattePanda with 64GB internal memory. It does not include a Windows 10 activation key.
A LattePanda is a complete Windows 10 single board computer. It has everything a regular PC has and can do anything that a regular PC does. It is compatible with almost every gadget you know: printers, joysticks, cameras and more. Any peripherals that work on your PC will work on a LattePanda.
A LattePanda comes pre-installed with a full edition of Windows 10 Home Edition, so you can run powerful tools such as Visual Studio, NodeJS, Java, Processing, and more. With existing APIs, you can develop your own software and hardware projects on a LattePanda like you would on a normal PC - C#, Javascript, Ruby etc. Say goodbye to your bulky laptop!
But wait! A LattePanda also includes an integrated Arduino compatible co-processor, which means it can be used to control and sense the physical world! Whether you are a Windows developer, IoT developer, DIY fanatic, interactive designer, robotics whizz, or maker, a LattePanda single board computer can aid your creative process!

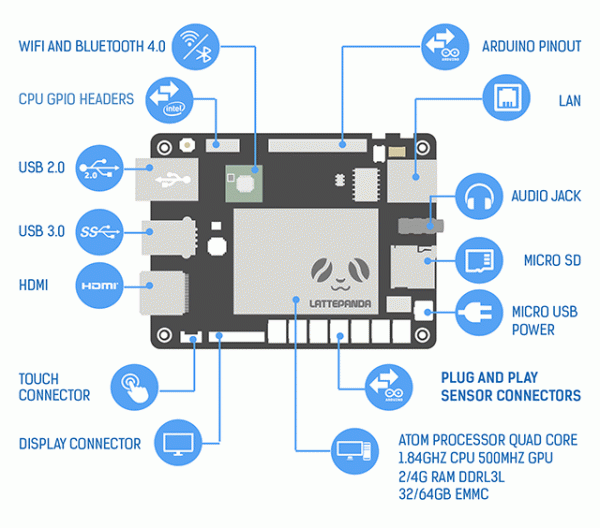

SPECIFICATION
- Processor: Intel Cherry Trail Z8350 Quad Core, 2M Cache, up to 1.92 GHz
- Operation System: Pre-installed Windows 10
- Ram: 4GB DDR3L
- Storage Capability: 64GB
- GPU: Intel HD Graphics, 12 EUs @200-500 Mhz, single-channel memory
- One USB3.0 port and two USB 2.0 ports
- WiFi and Bluetooth 4.0
- Built-in Arduino Co-processor: ATmega32u4
- Video output: HDMI and MIPI-DSI
- Onboard touch panel overlay connector
- Supports 100Mbps Ethernet
-
GPIO:
- 6 GPIOs from Cherry Trail processor
- 20 GPIOs from Arduino Leonardo
- 6 Plug and play Gravity sensor connectors
- Power: 5v/2A
- Dimension of board: 88 * 70 mm/ 3.46 * 2.76 inches
- Packing Size: 110 * 94 * 30 mm/4.33 * 3.70 * 1.18 inches
- N.W.: 55g
- G.W.: 100g
